Product Description

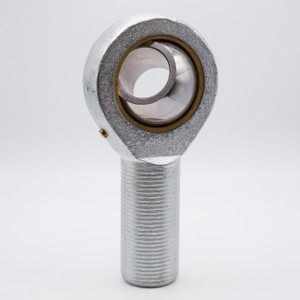

POS8ECL PTFE Lined Rod-End Ball Joint Bearing with 8mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 8mm Bore x 25mm Rod x M8 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Outer Diameter 22mm
Overall Height 53mm
Base to Center 42mm
Thread Size M8x1.25
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 1,745 lbf
Dynamic Load 3,147 lbf
Country of Origin China
Interchange Numbers MMCL8K, KAL8D, GALKFR8PW, SALKB8F, SMLCV8, POS8ECL
