Product Description

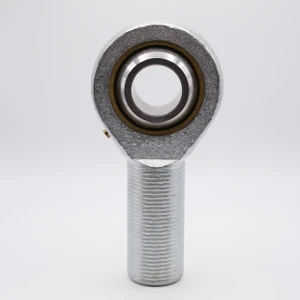

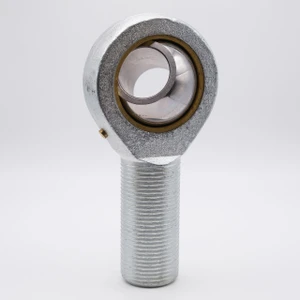

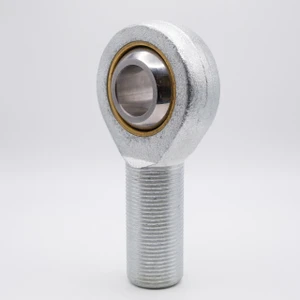

POSB10 Rod-End Bearing
Key Features
POSB10 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB10 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
POSB10 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, Conveyor System, Radio Control Helicopters, and Formula Cars, among others.
Product Videos
Custom Field
Inner Diameter 5/8"
Outer Diameter 1-1/2"
Overall Height 3-3/8"
Base to Center 2-5/8"
Thread Size -18UNF
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated Housing
Lubrication Light Oil
Static Load 8,835 lbf
Dynamic Load 4,496 lbf
Country of Origin Japan
Interchange Numbers HM10, HM10G, TRE-10, TRE10N, TRE-10N, MM-10, MM-10Z, POSB10Z
