Product Description

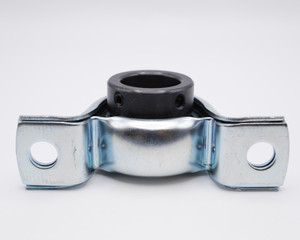

SAPP205-14 Pressed Steel Locking Collar Pillow Block Bearing
Key Features
SAPP205-14 is a Mounted Block Bearing Unit that is a combination of a pressed steel pillow block bearing and a light duty eccentric locking collar insert bearing. This unit features an eccentric locking collar that has been equipped with two Set Screws to tighten onto a shaft. Our SAPP200 Series come pre-lubricated with grease to allow it to be ready to use upon arrival.
Applications / Industries
SAPP205-14 Pressed Steel Mounted Blocks are used in a variety of applications such as Agricultural Equipment, Printing Industry, Pumps, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor Systems, Fan Assemblies, and both Light and Heavy Industrial Applications.
Product Videos
Custom Field
Inner Diameter 7/8"
Overall Length 4-1/4"
Overall Height 2-7/32"
Bolt Hole to Bolt Hole 3-25/64"
Base to Center 1-1/8"
Housing Material Pressed Steel
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,750 lbf
Dynamic Load 3,140 lbf
Speed Limit 6,250 RPM
Country of Origin China
Interchange Numbers KHPP205-14, SSPE-114, P5B-SLX-014, PB-7/8, AELPP205-14, FHPPZ205-14, SSP-14E, S-7/8FM, PBY-14, SAPP205-14F, SAPP205 7/8
Request for Quote Click Here
