Product Description

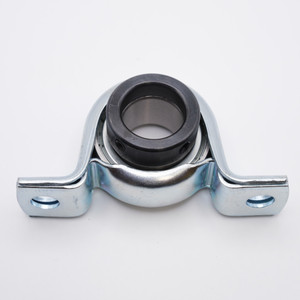

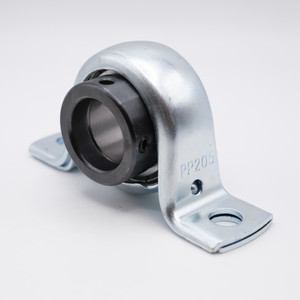

SAPP205-15 Press Steel Locking Collar Pillow Block Bearing
Key Features
SAPP205-15 is a Mounted Block Bearing Unit that is a combination of a pressed steel pillow block bearing and a light duty eccentric locking collar insert bearing. This unit features an eccentric locking collar that has been equipped with two Set Screws to tighten onto a shaft. Our SAPP200 Series come pre-lubricated with grease to allow it to be ready to use upon arrival.
Applications / Industries
SAPP205-15 Pressed Steel Mounted Blocks are used in a variety of applications such as Agricultural Machinery, Printing Industry, Pumps, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor Systems, Fan Assemblies, Light-duty Industrial applications, among others.
Product Videos
Custom Field
Inner Diameter 15/16"
Overall Length 4-1/4"
Overall Height 2-7/32"
Bolt Hole to Bolt Hole 3-25/64"
Base to Center 1-1/8"
Housing Material Pressed Steel
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,750 lbf
Dynamic Load 3,140 lbf
Speed Limit 6,250 RPM
Country of Origin China
Interchange Numbers KHPP205-15, SSPE-115, P5B-SLX-015, PB-15/16, AELPP205-15, FHPPZ205-15, SSP-15E, S-15/16FM, PBY-15, SAPP205-15F, SAPP205 15/16
