Product Description

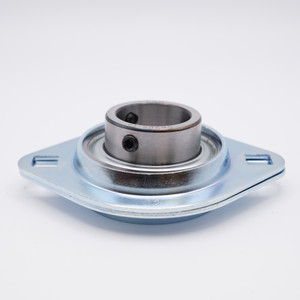

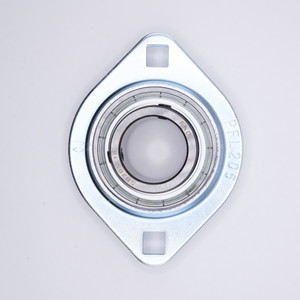

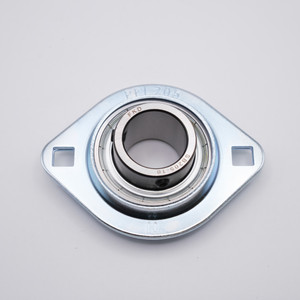

SBPFL204-12 Pressed Steel 2-Bolt Flange Unit
Key Features
SBPFL204-12 is a Pressed Steel 2-Bolt Flange Housing in combination with a Chrome Steel Set Screw Insert Ball Bearing. This Unit features two set screws, located on the extended inner ring of the insert, which can be tightened onto a shaft. Our SBPFL204-12 Pressed Steel Units are pre-Lubricated with Grease, ensuring they are ready for use upon delivery.
Applications/Industries
SBPFL204-12 Pressed Steel 2-Bolt Flange units are widely used in various applications such as HVAC Systems, Manufacturing Equipment, Agriculture, Automotives, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.
Product Videos
Custom Field
Inner Diameter 3/4"
Overall Length 3-35/64"
Overall Width 2-41/64"
Bolt Hole to Bolt Hole 2-13/16"
Housing Material Pressed Steel
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,495 lbf
Dynamic Load 2,882 lbf
Speed Limit 7,450 RPM
Country of Origin China
Interchange Numbers ENPFL-204-12S, UBPFL-204-12S, JELPFL204-012, FT 3/4 FM, AELPFL204-012, SSFT-3/4E, RAT 3/4, F2BSLX-3/4, FHPFLR204-12, FXR-U212N, BPFL4-3/4, RA012NPPB+47MST, PTF-3/4
