Product Description

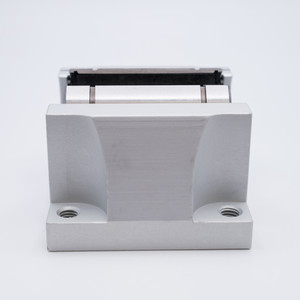

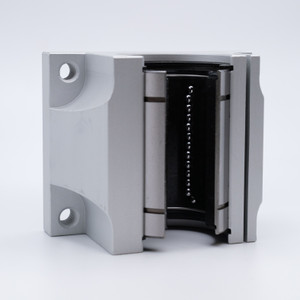

SDM30UU Open Pillow Case Linear Bearing
Key Features
SDM30UU Bearing is a Precision Open Case Pillow Block Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This SDM30UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SDM30UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SDM30UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 30mm
Overall Width 91mm
Overall Length 75mm
Height 48mm
Bolt Hole to Bolt Hole (Width) 75mm
Bolt Hole to Bolt Hole (Length) 60mm
Thread M8
Insert Bearing LM30UUOP
Housing Material Aluminum Alloy
Static Load 661 lbf
Dynamic Load 397 lbf
Country of Origin China
Interchange Numbers TBR30UU
