Product Description

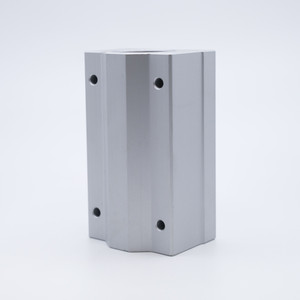

SMA16WUU Double Pillow Block Cased Linear Bearing
Key Features
SMA16WUU Bearing is a Precision Double Pillow Block Case Ball Bushing Unit with Rubber Seals on both sides and a Resin Retainer. This SMA16WUU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the LM16UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SMA16WUU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 16mm
Overall Width 50mm
Overall Length 85mm
Height 38.5mm
Bolt Hole to Bolt Hole (Width) 36mm
Bolt Hole to Bolt Hole (Length) 60mm
Thread M5x12
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Static Load 526 lbf
Dynamic Load 277 lbf
Country of Origin China
Interchange Numbers SMA16WUU, SC16WUUN, SCS16WUU, SMA16-WUU
