Product Description

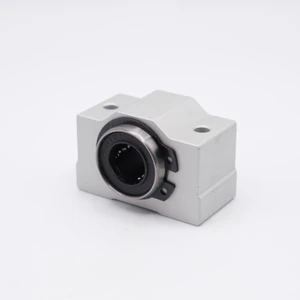

SMA20VUU Short Pillow Block Cased Linear Bearing
Key Features
SMA20VUU is a Short Pillow Block Case Ball Bushing Unit with Rubber Seals on both sides and a Resin Retainer. This SMA20VUU is used for high accuracy systems and any application where smooth linear motion is needed. This unit features a short housing made from aluminum alloy and uses the LM20UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SMA20VUU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 20mm
Overall Width 54mm
Overall Length 27.4mm
Overall Height 41mm
Bolt Hole to Bolt Hole 40mm
Thread Size M6x12
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Static Load 308 lbf
Dynamic Load 193 lbf
Country of Origin China
Interchange Numbers SMA20VUU, SC20VUUN, SCS20VUU, SMA20-VUU
