Product Description

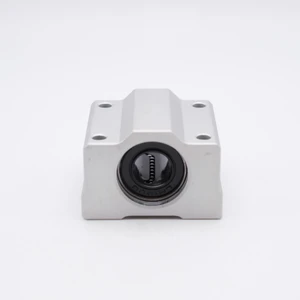

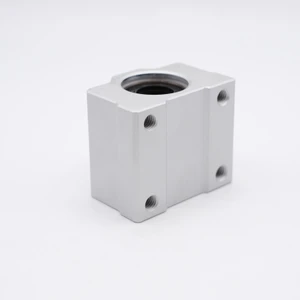

SMA8UU Pillow Case Linear Bearing
Key Features
SMA8UU Bearing is a Precision Slide Pillow Block Linear Ball Bushing Unit with Rubber Seals on both sides and a Resin Retainer. This SMA8UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SM8UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SMA8UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 8mm
Overall Length 30mm
Overall Width 34mm
Overall Height 22mm
Base to Center 11mm
Bolt Hole to Bolt Hole (Width) 24mm
Bolt Hole to Bolt Hole (Length) 18mm
Bolt Hole Size M5x12
Insert Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Lubrication Light Oil
Static Load 90 lbf
Dynamic Load 58 lbf
Country of Origin China
Interchange Numbers SMA8UU, SC8UUN, SCS8UU, SMA8-UU
