Product Description

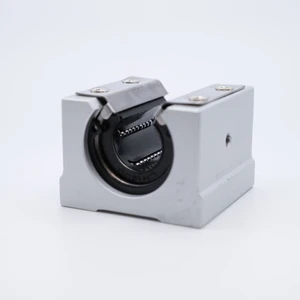

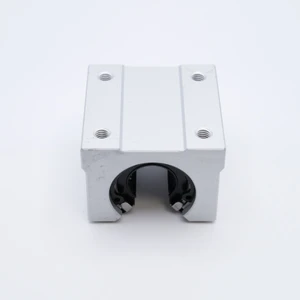

SME25UU Open Case Motion Linear Bearing
Key Features
SME25UU Bearing is a Precision Open Case Pillow Block Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This SME25UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SME25UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SME25UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 25mm
Overall Width 60mm
Overall Length 65mm
Height 47mm
Bolt Hole to Bolt Hole (Width) 40mm
Bolt Hole to Bolt Hole (Length) 40mm
Thread M6x12
Insert Bearing LME25UUOP
Housing Material Aluminum Alloy
Static Load 353 lbf
Dynamic Load 220 lbf
Country of Origin China
Interchange Numbers SBR25UU, SME25-UU, SBR25-UU
