Product Description

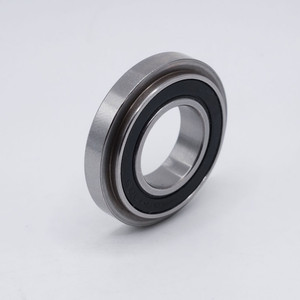

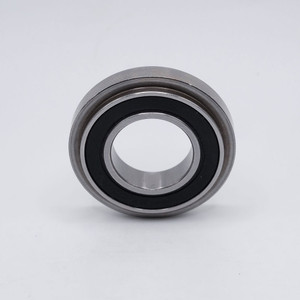

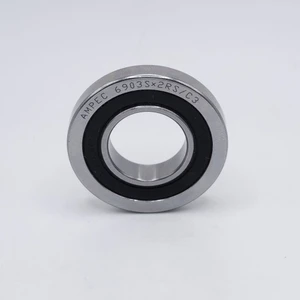

6903SX-2RSC3 Ball Bearing
Key Features
6903SX-2RSC3 is a C3 Clearance Thin High Speed Ball Bearing manufactured with Rubber Seals on both sides and is pre-lubricated with Grease, allowing it to be ready for use upon delivery. C3 Internal Clearance means that the bearing has room for expansion between the races if needed. Our Chrome Steel 6900 Series Thin High Speed Light Duty Ball Bearings feature deep groove geometry and minimized inner and outer rings, making this bearing ideal for high speed applications with limited space while still being able to accommodate light radial and axial loads.
Applications / Industries
6903SX-2RSC3 Thin High Speed Light Duty Ball Bearings are used in Automotives, Industrial Equipment, High Speed Applications, Electric Motors, Robotics, among others.
Product Videos
Custom Field
Inner Diameter 17mm
Outer Diameter 35mm
Width 7mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 576 lbf
Dynamic Load 1,032 lbf
Speed Limit 22,500 RPM
Country of Origin China
Interchange Numbers SX0389LUACS25 , SX0389LUC3 , 6903SXC3-2RS
