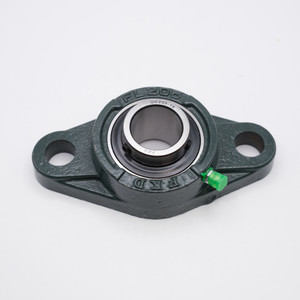

  • UCFL206-19 Cast Iron Oval Flange 1-3/16" Bore Top View

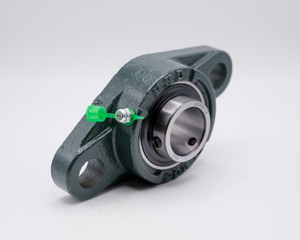

  • UCFL206-19 Cast Iron Oval Flange 1-3/16" Bore Side View
  • UCFL206-19 Cast Iron Oval Flange 1-3/16" Bore Side View

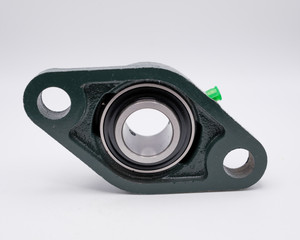

  • UCFL206-19 Cast Iron Oval Flange 1-3/16" Bore Bottom View

    • UCFL206-19 Cast Iron Oval Flange Bore Size 1-3/16 INCH

    AMPEC

    $18.44
    (No reviews yet) Write a Review
    SKU:
    UCFL206-19
    Availability:
    Usually ships in 24 hours.
    Bulk Pricing:
    Buy in bulk and save

    Bulk discount rates

    Below are the available bulk discount rates for each individual item when you purchase a certain amount

    • Buy 10 - 24 and get 5% off
    • Buy 25 - 49 and get 10% off
    • Buy 50 or above and get 15% off
    Adding to cart… category.add_cart_announcement
    Inner Diameter:
    1-3/16"
    Overall Length:
    5-13/16"
    Overall Height:
    3-5/32"
    Bolt Hole to Bolt Hole:
    4-39/64"
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,569 lbf
    Dynamic Load:
    4,377 lbf
    Speed Limit:
    5,300 RPM
    Country of Origin:
    China
    Interchange Numbers:
    KFC2-25-1-3/16, KFC2-45-1-3/16, UCFL206E-1-3/16, SFT-1-3/16EC, SFT-1-3/16A, VFT-1-3/16E, UCFT206-1-3/169, VF2S-219, 124171-F2B-SC-1-3/16, YCJT-1-3/16, FX3-U219N, FHSFT206-1-3/16G, SFT-1-3/16, SFT-1-3/16, FYT-1-3/16-TM
    Request for Quote:
    Click Here

    Product Description

    UCFL206-19 2-Bolt Flange Bearing

    Key Features

    UCFL206-19 is a UCFL200 Series Cast Iron Pillow Block Flange Unit featuring a wide inner ring and two set screws. This UCFL206-19 2-Bolt Flange Bearing has a combination of a chrome steel set screw insert bearing and an oval cast iron 2-Bolt Flange housing. The UCFL200 Series are equipped with insert ball bearing which has two grub screws to allow tightening against the shaft once fitted in place. Our mounted blocks are pre-lubricated with grease ensuring they are ready for use upon arrival.

    Applications / Industries

    UCFL206-19 2-Bolt Flange Cast Iron Bearings are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agricultural Machinery, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, Feed Mills, among other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 1-3/16"
    Overall Length 5-13/16"
    Overall Height 3-5/32"
    Bolt Hole to Bolt Hole 4-39/64"
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,569 lbf
    Dynamic Load 4,377 lbf
    Speed Limit 5,300 RPM
    Country of Origin China
    Interchange Numbers KFC2-25-1-3/16, KFC2-45-1-3/16, UCFL206E-1-3/16, SFT-1-3/16EC, SFT-1-3/16A, VFT-1-3/16E, UCFT206-1-3/169, VF2S-219, 124171-F2B-SC-1-3/16, YCJT-1-3/16, FX3-U219N, FHSFT206-1-3/16G, SFT-1-3/16, SFT-1-3/16, FYT-1-3/16-TM
    Request for Quote Click Here
