Product Description

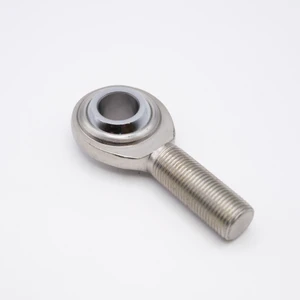

VCM-7 Rod-End Bearing
Key Features
VCM-7 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. VCM-7 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
VCM-7 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 7/16"
Outer Diameter 1-1/8"
Overall Height 2-11/16"
Base to Center 2-1/8"
Thread Size 7/16-20
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 4,464 lbf
Country of Origin USA
Interchange Numbers HM7, HM7G, TRE7, TRE7N, TRE-7N, MM-7, MM7Z, POSB7Z, VCB-7, VCM-7
