Product Description

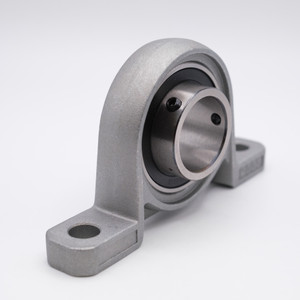

KP004 Pillow Block Bearing
Key Features
KP004 Pillow Block Bearing is a Miniature Zinc Alloy Pillow Block with a Set Screw Locking System Ball Bearing Unit. Set Screw Locking features two Set Screws positioned 120° apart on the inner ring of the insert which can be tightened to lock onto a shaft, maximizing holding power while minimizing inner ring distortion. KP004 comes pre-Lubricated with Grease, ready for use upon delivery.
Application / Industries
KP004 Pillow Block Ball Bearings are widely used in various Robotic Systems, HVAC Systems, Food Processing Machinery, Pharmaceutical Machinery, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Office Equipment, among others.
Product Videos
Custom Field
Inner Diameter 20mm
Overall Height 55mm
Overall Length 100mm
Bolt Hole to Bolt Hole 80mm
Base to Center 28mm
Housing Material Zinc Alloy
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 11 lbf
Dynamic Load 20 lbf
Speed Limit 12,000 RPM
Country of Origin China
Interchange Numbers KP04UU, KP04U, KP004RS, KVP004LL, KP004-2RS, UP004UU
