Product Description

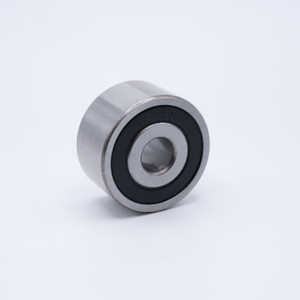

3309-2RS Double Row Ball Bearing
Key Features
3309-2RS is a Double Row Angular Contact Bearing with both sides Rubber Sealed to protect the bearing from any corrosion or outside debris. This 3309-2RS Medium Duty Double Row Ball Bearing is designed to accommodate combined loads. Our 3300 Series Metric Double Row Ball Bearings are available either open, metal shielded, or with rubber sealed closures and come pre-lubricated with either grease or light oil.
Applications / Industries
3309-2RS Double Row Ball Bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Train, Robotics, Elevators, Rolling Mills, Ship Rudder Shafts, and aggregate crushers, among others.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 100mm
Width 39.7mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 16,300 lbf
Dynamic Load 15,100 lbf
Speed Limit 4,100 RPM
Country of Origin China
Interchange Numbers 3309B.2RSR.TVH, 3309-CZZ, 3309-2NSL, 3309B.2RSR.TVH, 3309-2RS1, 3309EE
