Product Description

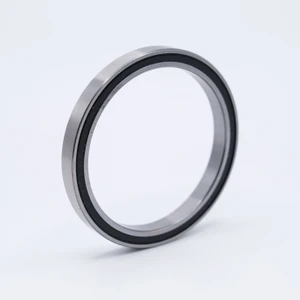

6700-2RS-16W5 Ball Bearing
Key Features
6700-2RS-16W5 is a Thin High Speed Ball Bearing manufactured with Rubber Seals on both sides, a special 16mm outer diameter as well as a special 5mm width. is pre-lubricated with Grease, allowing it to be ready for use upon delivery. Our Chrome Steel 6700 Series Thin High Speed Ball Bearings are excellent in light radial thrust or combined load applications that require high speeds while taking up as little space as possible.
Applications / Industries
6700-2RS-16W5 Thin High Speed Ball Bearings are used in Scanning Equipment, Navigation tools, Pressure-Regulating Systems, Robotics, Speed Reducers, Radar Equipment, Optical Equipment, Slip Ring Assemblies, among others.
Product Videos
Custom Field
Inner Diameter 10mm
Outer Diameter 16mm
Width 5mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 97 lbf
Dynamic Load 191 lbf
Speed Limit 36,000 RPM
Country of Origin China
Interchange Numbers 6700-2RS16/W5, 6700RS16, 67001605-2RS, 671605-2RS
