Product Description

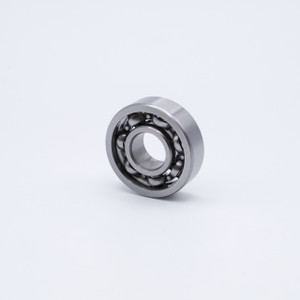

688 Miniature Ball Bearing
Key Features
688 is a Precision Miniature Ball Bearing manufactured to have both sides Open and is pre-lubricated with Light Oil allowing it to be ready for use upon delivery. Made from Chrome Steel, 688 is a 600 Series Miniature Ball Bearing meant for normal-duty applications. Our 600 Series Mini Ball Bearings have a Larger Inner Diameter to be used in High Speed & Normal Load Capacity Applications.
Applications / Industries
688 Miniature Ball Bearings have a wide range of applications, some of those uses include Automation Control Components, High Speed Applications, Computer systems, Robotic system, Chemical equipment, Hand Piece, RC Helicopters, RC Planes, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Outer Diameter 16mm
Width 4mm
Closure Type Open
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 132 lbf
Dynamic Load 282 lbf
Speed Limit 43,000 RPM
Country of Origin China
Interchange Numbers L-1680, MR688, R-1680
