Product Description

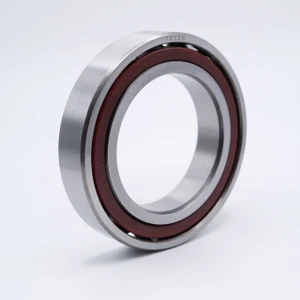

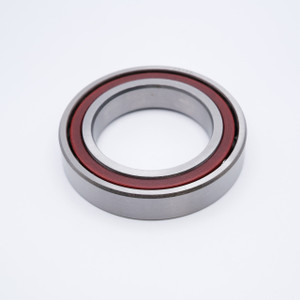

7310B Angular Contact Ball Bearing
Key Features
7310B is a Precision Angular Contact Ball Bearing with a 40 Degree Phenolic Cage and an ABEC1 Precision Rating. Phenolic cages are lightweight and strong making them ideal for high speed applications and the 40 degree angular contact provides an increase in thrust load capacity relative to the inner and outer raceways. 7310B also has Universal Mounting and comes pre-lubricated with Light Oil, ensuring that it is ready for immediate use upon delivery.
Applications / Industries
7310B Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 70mm
Outer Diameter 150mm
Width 35mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 21,000 lbf
Dynamic Load 26,000 lbf
Speed Limit 5,400 RPM
Country of Origin Europe/Japan
Interchange Numbers 7314PJ, 7314BE, 7314WN, 7314BYUGL, 7314BT1, 7314B, S6314BTA
