Product Description

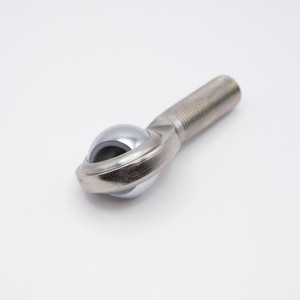

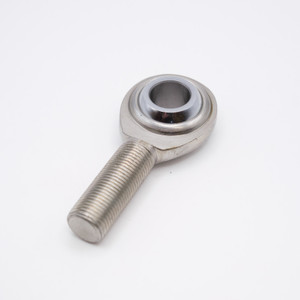

CB-5 Rod-End Bearing
Key Features
CB-5 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. CB-5 bearings consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank.
Applications / Industries
CB-5 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 5/16"
Outer Diameter 7/8"
Overall Height 2-5/16"
Base to Center 1-7/8"
Thread Size 5/16-24
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 3,577 lbf
Country of Origin China
Interchange Numbers GAL5-DO, JML5M, SMP5M, CB-5M, MB-5M, MB-5MT, POS05L, POS05 L
