Product Description

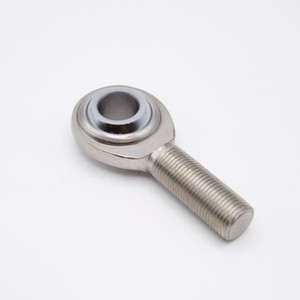

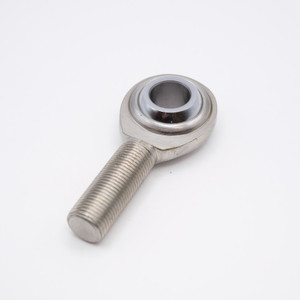

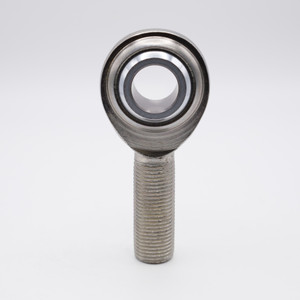

CM-M20 Rod-End Bearing
Key Features
CM-M20 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. CM-M20 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
CM-M20 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 20mm
Outer Diameter 46mm
Overall Height 101mm
Base to Center 78mm
Thread Size M20x1.5
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Carbon Steel
Lubrication Light Oil
Static Load 12,837 lbf
Country of Origin USA
Interchange Numbers GAKFR20PB, SAKAC20M, SM20, SA20TK, GAKR20PB, SM-20, CM-M20, CM-M20Z, DWTM20, MM-M20, AM-M20, POS-20NP, GAKR20-PB, EM-M20, MCMR20, GAKFR20-PB4
