Product Description

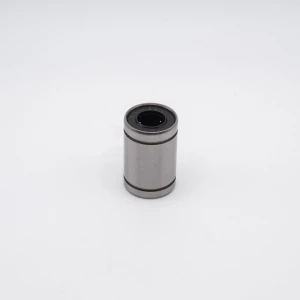

LM12UU Linear Ball Bushing Bearing
Key Features
LM12UU is a Precision Accuracy Grade Linear Bushing with a Built-In Synthetics Resin Retainer and is sealed on both sides with Rubber Seals. LM12UU features a chrome steel jacket and a resin retainer which reduces noise during operation and allows for smooth, precise linear motion. Our Linear Motion Bearings are pre-lubricated with Light Oil, ensuring they are ready for immediate use upon delivery.
Applications / Industries
LM12UU Linear bearings can be used in a variety of different applications including Lab Equipment, Packaging Equipment, CNC Machinery, Robotic Equipment, Electronics, Appliances, Furniture, Automation Machinery, among others.
Product Videos
Custom Field
Inner Diameter 12mm
Outer Diameter 21mm
Length 30mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 134 lbf
Dynamic Load 93 lbf
Country of Origin China
Interchange Numbers SM12GUU, LBD12UU, LB12NYDD, N12VUU, L12UU, TB-12UU, KLM-12LL, SDM-12YUU, SCS12UU, LM122130UU
