Product Description

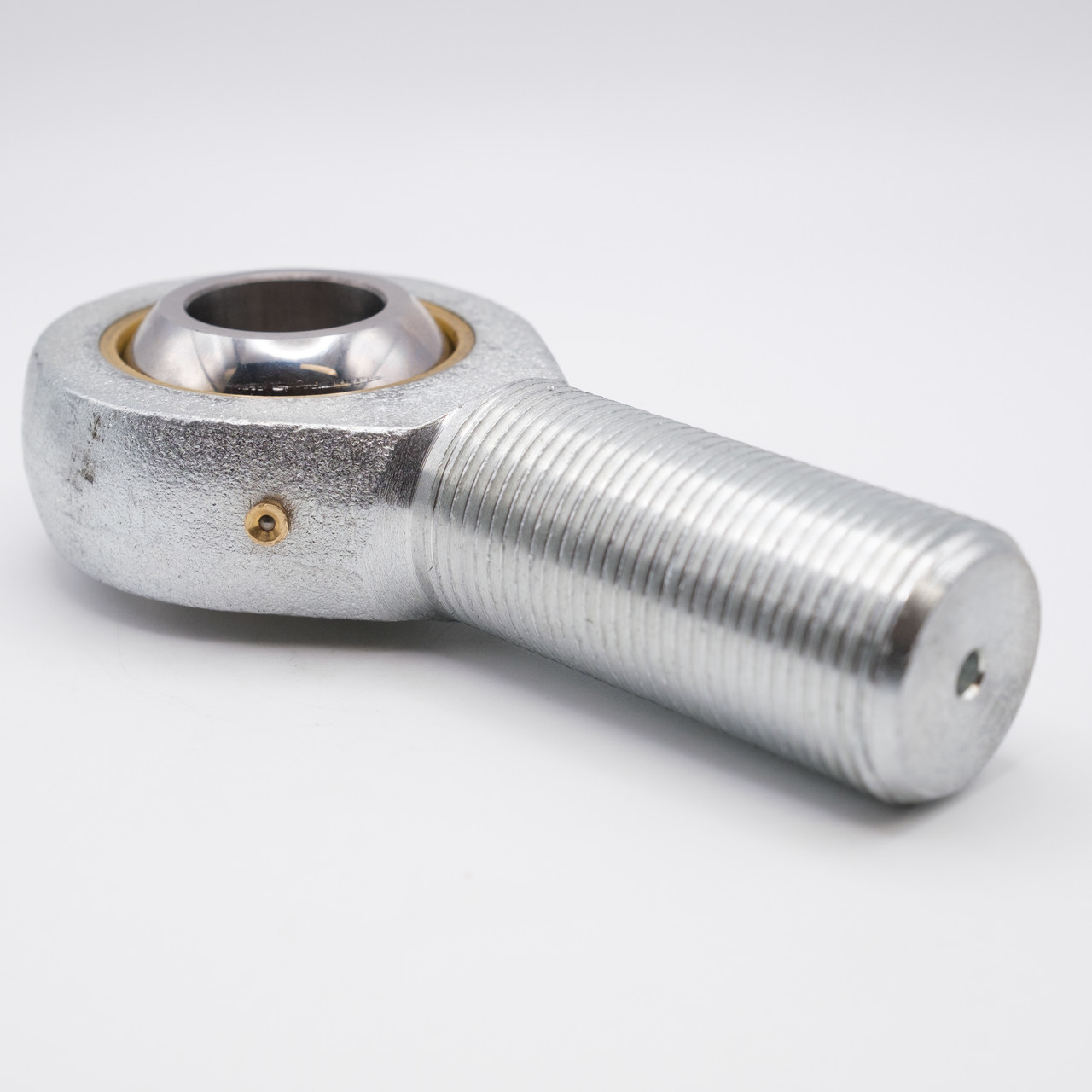

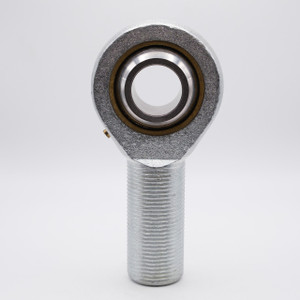

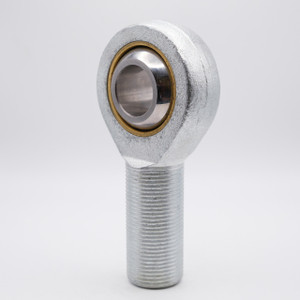

POS5ECL PTFE Lined Rod-End Ball Joint Bearing with 5mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 5mm Bore x 20mm Rod x M5 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 5mm
Outer Diameter 16mm
Overall Height 41mm
Base to Center 33mm
Thread Size M5x0.8
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 751 lbf
Dynamic Load 1,470 lbf
Country of Origin China
Interchange Numbers MMCL5K, KAL5D, GALKFR5PW, SALKB5F, SMLCV5, POS5ECL
Request for Quote Click Here
