Product Description

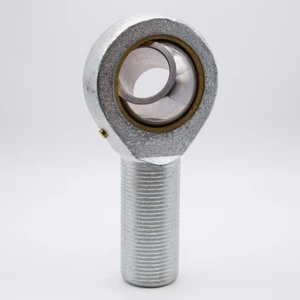

POSB16 is a chrome steel rod-end bearing designed with a 1" bore and a right handed thread. Rod-End Bearing, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points.
Sizes: 1" Bore x 2-1/8" Rod Length x 1-1/4-12 UNF Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 1"
Outer Diameter 2-3/4"
Overall Height 5-1/2"
Base to Center 4-1/8"
Thread Size 1-1/4-12UNF
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated Housing
Lubrication Light Oil
Static Load 25,179 lbf
Dynamic Load 13,332 lbf
Country of Origin China
Interchange Numbers HM16, HM16G, TRE-16, TRE16N, TRE-16N, MM-16, MM-16Z, POSB16Z
