Product Description

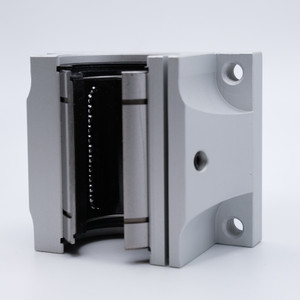

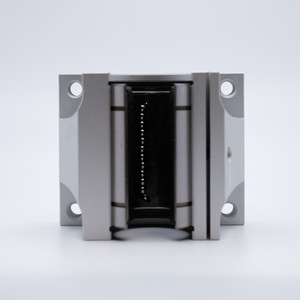

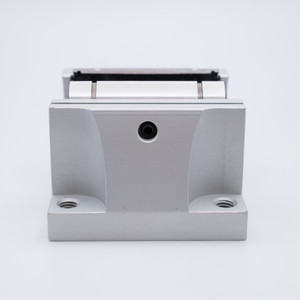

SDM16UU Open Pillow Case Motion Linear Bearing
Key Features
SDM16UU Bearing is a Precision Open Case Pillow Block Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This SDM16UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SDM16UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SDM16UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 16mm
Overall Width 62mm
Overall Length 42mm
Height 27mm
Bolt Hole to Bolt Hole (Width) 50mm
Bolt Hole to Bolt Hole (Length) 30mm
Thread M5
Insert Bearing LM16UUOP
Housing Material Aluminum Alloy
Static Load 110 lbf
Dynamic Load 88 lbf
Country of Origin China
Interchange Numbers TBR16UU
