Product Description

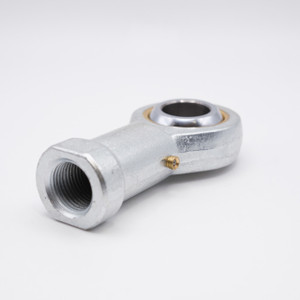

SI4TK Rod-End Bearing
Key Features
SI4TK bearing is a Female Rod End PilloBall Insert Type with a Right Handed Thread Ball Joint Bearing built in a body of Die-Cast Special Zinc Alloy. SI4TK Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. SI4TK bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
SI4TK Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 4mm
Outer Diameter 14mm
Overall Height 31mm
Base to Center 24mm
Thread Size M4x0.7
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Die-Cast Zinc Alloy
Lubrication Light Oil
Static Load 1,052 lbf
Dynamic Load 558 lbf
Country of Origin China
Interchange Numbers SI4TK, PHSA4, GIKR4-PB, CW-M4, MW-M4
