Product Description

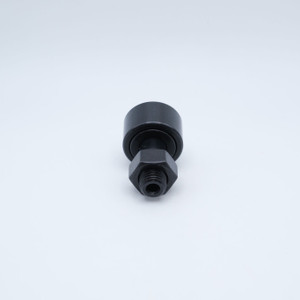

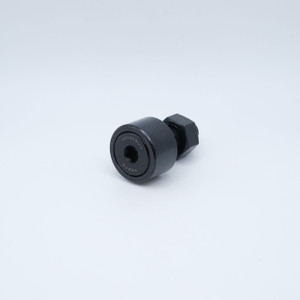

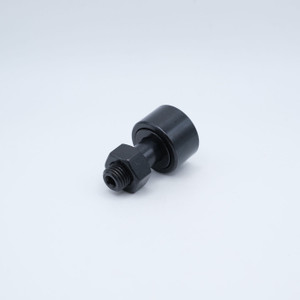

CR8VBUU Cam Follower Needle Roller Bearing
Key Features
CR8VBUU is a Cam Follower Needle Roller Bearing with a hexagon socket, Rubber Seals, and is a Full Complement Bearing. This Cam Follower features needle rollers, a stud and does not have a retainer. The hexagon socket found on the stud head allows for secure tightening when being mounted in an application. These bearings are designed for outer ring rotation with high rotational performance and are ideal for applications requiring low friction and a high load capacity.
Applications / Industries
CR8VBUU Cam Follower can support high radial and axial loads and are suitable for Cam Drives, Slideways, Conveying Equipment, Cam Mechanisms, Industrial Robots, Office Automation Machines, Machine Tools, among others.
Product Videos
Custom Field
Outer Diameter 1/2"
Width 11/32"
Stud Diameter 3/16"
Thread Size No.10-32
Thread Length 1/4"
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 481 lbf
Dynamic Load 566 lbf
Country of Origin China
Interchange Numbers CF1/2NSB, CF8SB.PP, CR8VBUUR, CRSB8, CF1/2B, S32SW, CR1/2AXB, CR8UUHM, CRV8XLLH
