  • UCF204-12 4 Bolt Flange bearing 3/4" Bore Top View

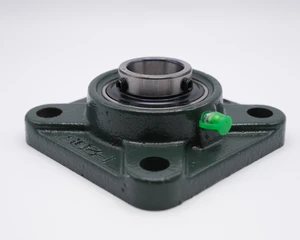

  • UCF204-12 4 Bolt Flange bearing 3/4" Bore Side View
  • UCF204-12 4 Bolt Flange bearing 3/4" Bore Side View
  • UCF204-12 4 Bolt Flange bearing 3/4" Bore Bottom View

    • 3/4" Bore UCF204-12 4-Bolt Flange bearing VF4S-212

    $11.42
    (1 review) Write a Review
    SKU:
    UCF204-12
    Availability:
    Usually ships in 24 hours.
    Bulk Pricing:
    Buy in bulk and save

    Bulk discount rates

    Below are the available bulk discount rates for each individual item when you purchase a certain amount

    • Buy 10 - 24 and get 5% off
    • Buy 25 - 49 and get 10% off
    • Buy 50 or above and get 15% off
    Inner Diameter:
    3/4"
    Overall Length:
    3-25/64"
    Bolt Hole to Bolt Hole:
    2-33/64"
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,495 lbf
    Dynamic Load:
    2,882 lbf
    Speed Limit:
    7,450 RPM
    Country of Origin:
    China
    Interchange Numbers:
    SF-3/4, VF4S-112, VF4S-212, MF4S-212, F4BSCNP-3/4, 124120, VSC-3/4, SCJ-3/4, YCJ-3/4, FG56204.012, UCF204-12, FB250X3/4, FB250HWX3/4,RCJY-3/4, F3-U212N, JWSF-3/4, JESF-3/4, KFC4-25-3/4, KFC4-45-3/4, UCF204-12E, UCF204-12S, UCF204-012T, SF-3/4A
    Adding to cart… category.add_cart_announcement

    Product Description

    UCF204-12 4-Bolt Flanged Mounted Block Unit

    Key Features

    UCF204-12 is a 4-Bolt Flange Unit with a wide inner ring with two set screws. This unit features a Cast Iron 4-Bolt Flange Housing and a Chrome Steel Insert, complete with a slinger seal design and an anti-rotation device. The insert has been manufactured with two set screws, located on the extended inner ring, which can be tightened onto a shaft. This mounted block unit has been equipped with a grease feed, allowing for re-lubrication of the bearing if necessary. Our UCF204-12 Mounted Block Bearings are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.

    Applications / Industries

    UCF204-12 Mounted Blocks are used in a variety of applications such as Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 3/4"
    Overall Length 3-25/64"
    Bolt Hole to Bolt Hole 2-33/64"
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,495 lbf
    Dynamic Load 2,882 lbf
    Speed Limit 7,450 RPM
    Country of Origin China
    Interchange Numbers SF-3/4, VF4S-112, VF4S-212, MF4S-212, F4BSCNP-3/4, 124120, VSC-3/4, SCJ-3/4, YCJ-3/4, FG56204.012, UCF204-12, FB250X3/4, FB250HWX3/4,RCJY-3/4, F3-U212N, JWSF-3/4, JESF-3/4, KFC4-25-3/4, KFC4-45-3/4, UCF204-12E, UCF204-12S, UCF204-012T, SF-3/4A

    Product Reviews

    Write a Review

    1 Review Hide Reviews Show Reviews

    • 5
      Title of review 473

      Posted by Gary Lehman on 26th Sep 2022

      Good price and got them quick. I recommend them.
