Product Description

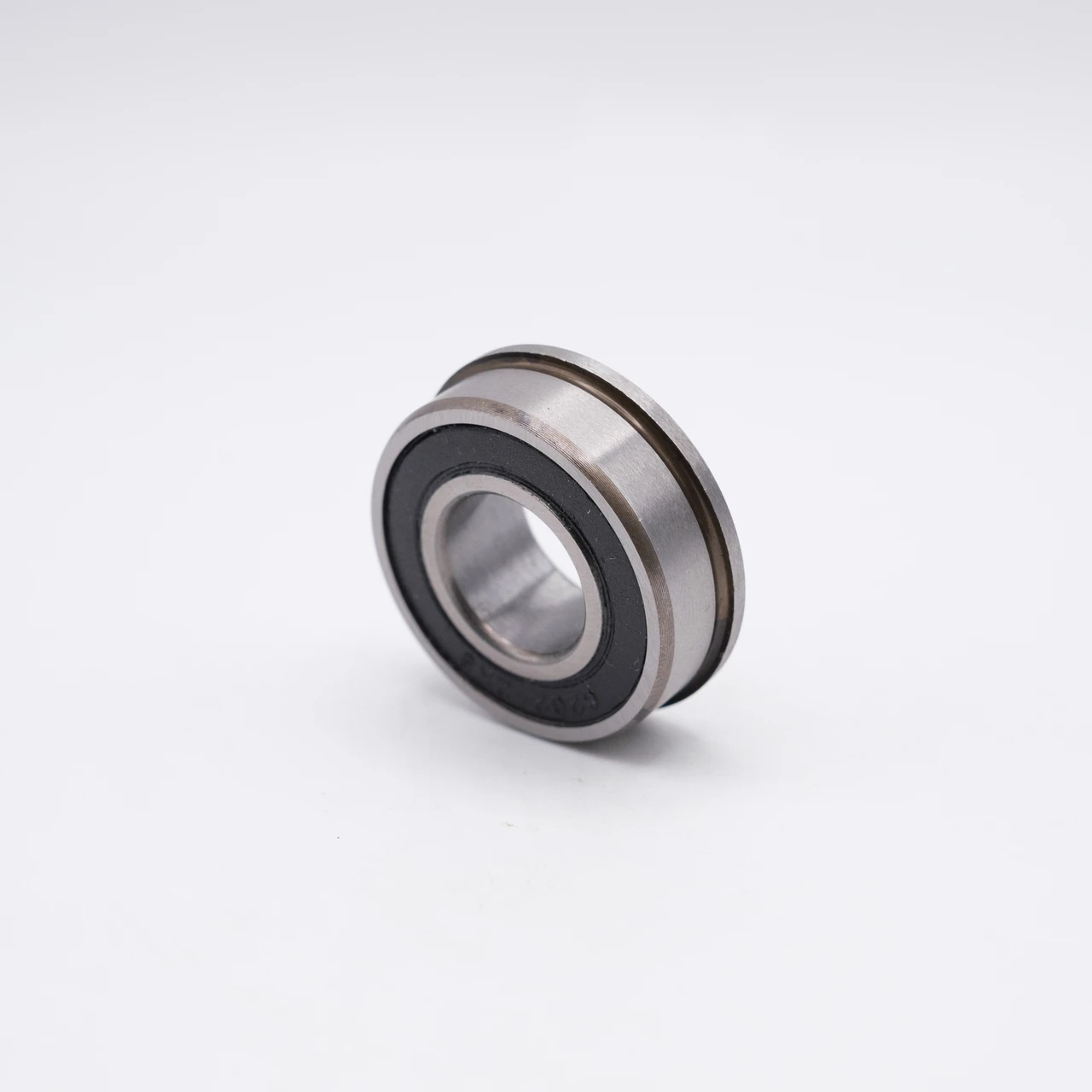

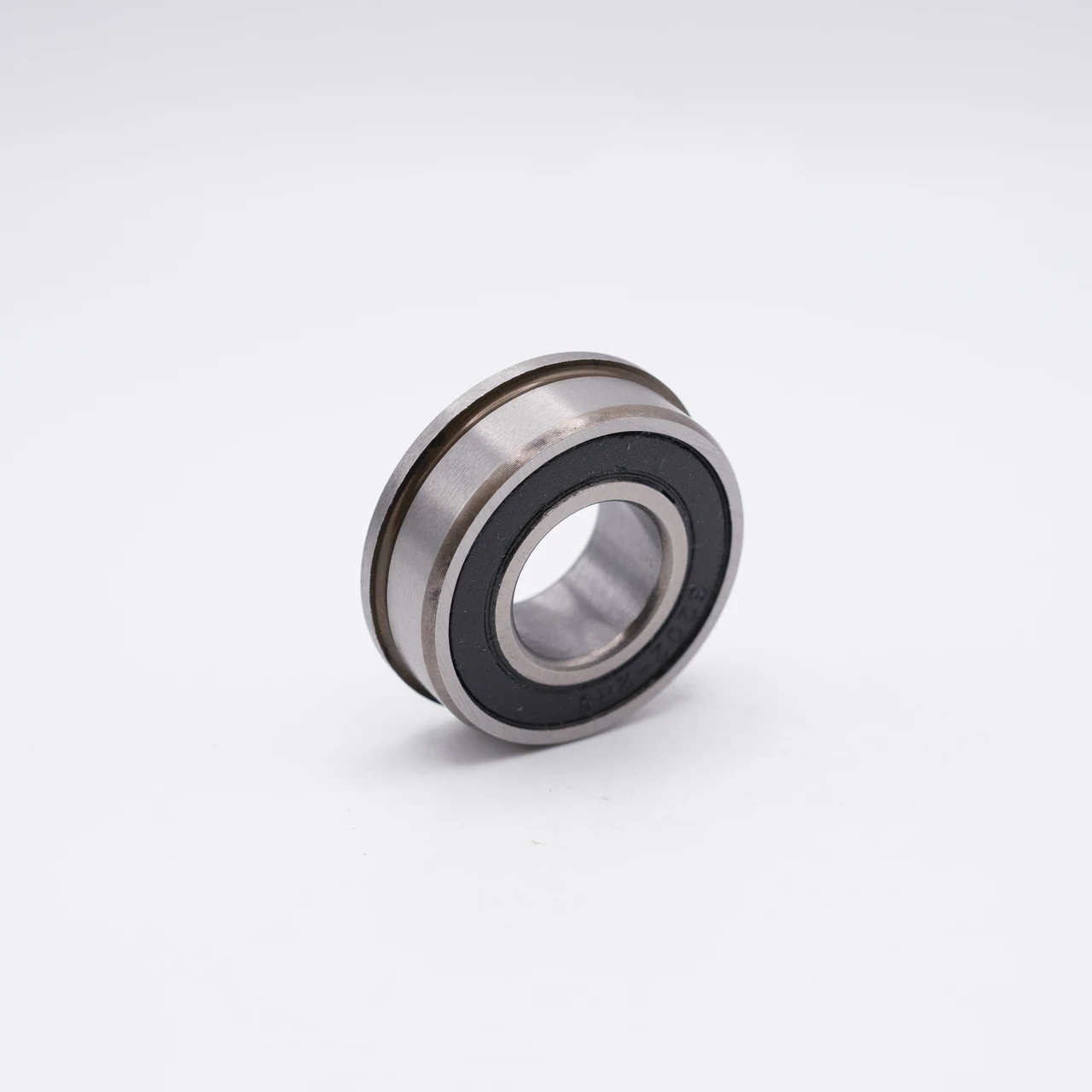

32264-88 is a Precision Miniature Flanged Ball Bearing manufactured to have both sides Rubber Sealed and is pre-lubricated with Grease allowing it to be ready for use upon delivery. Made from Chrome Steel, 32264-88 features a special 1/2" extended inner ring width as well as a Steel Flange located on the outer ring of the bearing to allow for easier locating on a housing while also preventing any axial movement of the bearing in the event of a thrust load being put onto it.
Sizes: ID 0.625" x OD 1.375" x W 0.438" + Overall Width 0.500" = ID 15.88mm x OD 34.93mm x W 11.13mm + Overall Width 12.7mm
Interchange: TW7, 32264, 6384K365, 5273VMF53, 4194309, HW13B, TW-7, 44F40-PP, RF102214
Applications: Ball bearings are widely used in various industries and everyday applications such as Electric Fans, Automotive, RC Cars, RC Planes, RC Helicopters, Industrial & Medical Hand Pieces, Surgical Equipment, Household Electrical Appliances, Medical Instruments, Surveillance Systems, Robotics, Flow Meters, Fuel Control, Servos, among others.
