Product Description

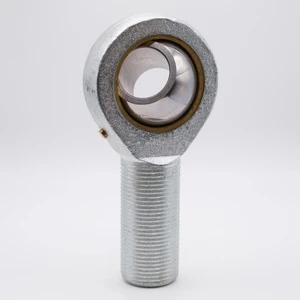

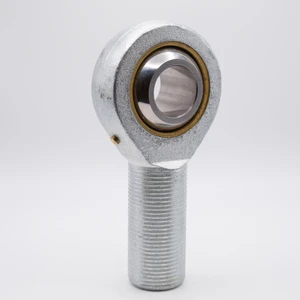

POS6L Rod-End Bearing
Key Features
POS6L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POS6L bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
POS6L Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, Go-Karts, Radio Control Helicopters, and Formula Cars, among others.
Product Videos
Custom Field
Inner Diameter 6mm
Base to Center 36mm
Overall Height 45mm
Outer Diameter 18mm
Thread Size M6x1
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Alloy Housing
Lubrication Light Oil
Static Load 1,063 lbf
Dynamic Load 944 lbf
Country of Origin China
Interchange Numbers SALKAC6M, GAKL6PB, KAL6-NIRO, SALBP6S, POSL6, TSML6, BNM6L, MB-M6, CB-M6
