Product Description

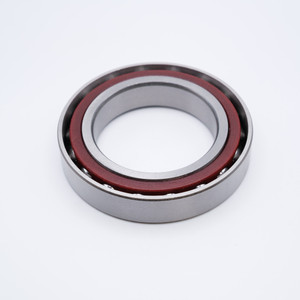

7201B Angular Contact Ball Bearing
Key Features
7201B is a Precision Angular Contact Ball Bearing with ABEC5 or P5 Precision Rating, and the 40 degree angular contact provides an increase in thrust load capacity relative to the inner and outer raceways. Phenolic cages are lightweight and strong making them ideal for high speed applications and 40 Degree angular contact bearings deliver more dial capacity and performance. 7201B also has Universal Mounting and comes pre-Lubricated with Light Oil.
Applications / Industries
7201B Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills, among others.
Product Videos
Custom Field
Inner Diameter 12mm
Outer Diameter 32mm
Width 10mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 843 lbf
Dynamic Load 1,580 lbf
Speed Limit 27,000 RPM
Country of Origin China
Interchange Numbers 7201, 7201B, 7201C, 7201H, 506302
