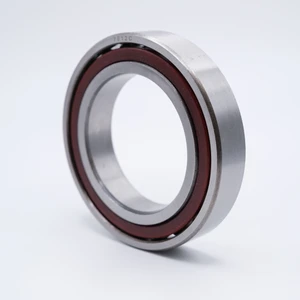

  • 7209C Precision 15 Degree Angular Ball Bearing 45x85x19 Left View

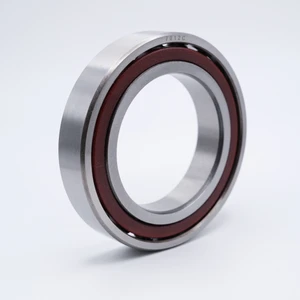

  • 7209C Precision 15 Degree Angular Ball Bearing 45x85x19 Right View
  • 7209C Precision 15 Degree Angular Ball Bearing 45x85x19 Front View

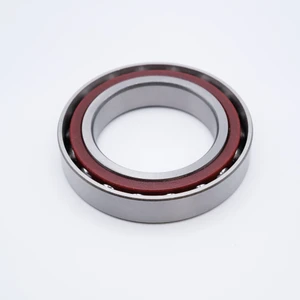

  • 7209C Precision 15 Degree Angular Ball Bearing 45x85x19 Back View

    • 7209C Precision 15 Degree Angular Ball Bearing 45x85x19

    USBC

    $99.01
    (No reviews yet) Write a Review
    SKU:
    7209C-USBC
    Availability:
    Usually ships in 24 hours.
    Inner Diameter:
    45mm
    Outer Diameter:
    85mm
    Width:
    19mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Static Load:
    6,180 lbf
    Dynamic Load:
    7,300 lbf
    Speed Limit:
    17,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    N209E, N209, 6209-2RS, 1209, NJ209E, 7209C, NSKBL209ZZ, NSKBL209NR, NUP209
    Adding to cart… category.add_cart_announcement

    Product Description

    7209C Angular Contact Ball Bearing

    Key Features

    7209C is a ABEC1 Precision Angular Contact Ball Bearing with a 15 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and 15 Degree angular contact bearings deliver more dial capacity and performance. 7209C also has Universal Mounting and comes pre-Lubricated with Light Oil.

    Applications / Industries

    7209C Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.

    Product Videos

    Custom Field

    Inner Diameter 45mm
    Outer Diameter 85mm
    Width 19mm
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Static Load 6,180 lbf
    Dynamic Load 7,300 lbf
    Speed Limit 17,000 RPM
    Country of Origin China
    Interchange Numbers N209E, N209, 6209-2RS, 1209, NJ209E, 7209C, NSKBL209ZZ, NSKBL209NR, NUP209
