Product Description
CF16UURA Cam Follower Sealed Bearing
Key Features

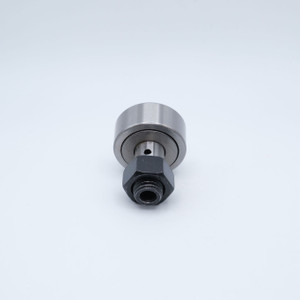

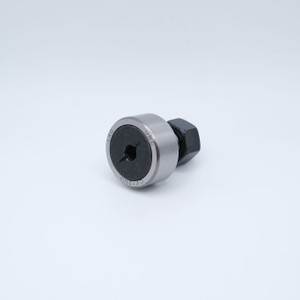

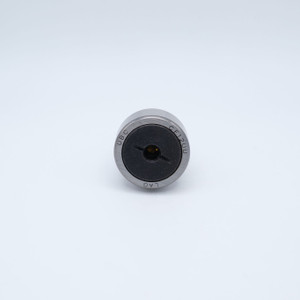

CF16UURA is a Cam Follower Needle Roller Bearing with a hexagon socket, Rubber Seals, and a crowned outer ring. This Cam Follower features needle rollers and a stud, enclosed in a thick crowned outer ring. The hexagon socket found on the stud head allows for secure tightening when being mounted in an application. These bearings are designed for outer ring rotation with high rotational performance and are ideal for applications requiring low friction and a high load capacity.
Applications / Industries
CF16UURA Cam Follower can support high radial and axial loads and are suitable for Cam Drives, Slideways, Conveying Equipment, Cam Mechanisms, Industrial Robots, Office Automation Machines, Machine Tools, among others.
Product Videos
Custom Field
Outer Diameter 35mm
Width 18mm
Stud Diameter 16mm
Thread Size M16x1.5
Thread Length 17mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 4,114 lbf
Dynamic Load 2,697 lbf
Country of Origin China
Interchange Numbers KR35PPXSK, KR35PPSK, MCFR-35SBX, MCFR-35SB, CF16BUUR, CF16BR, KR35XSK, MCFR-35BX, MCFR35B
