Product Description

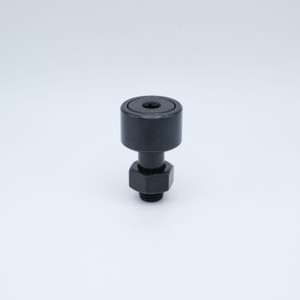

CR36VBUU Cam Follower Needle Roller Bearing
Key Features
CR36VBUU is a Cam Follower Needle Roller Bearing with a hexagon socket, Rubber Seals, and is a Full Complement Bearing. This Cam Follower features needle rollers, a stud and does not have a retainer. The hexagon socket found on the stud head allows for secure tightening when being mounted in an application. These bearings are designed for outer ring rotation with high rotational performance and are ideal for applications requiring low friction and a high load capacity.
Applications / Industries
CR36VBUU Cam Follower can support high radial and axial loads and are suitable for Cam Drives, Slideways, Conveying Equipment, Cam Mechanisms, Industrial Robots, Office Automation Machines, Machine Tools, among others.
Product Videos
Custom Field
Outer Diameter 2-1/4"
Width 1-1/4"
Stud Diameter 7/8"
Thread Size 7/8-14
Thread Length 1"
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 14,365 lbf
Dynamic Load 7,306 lbf
Country of Origin China
Interchange Numbers CF36PPSK, CF2-1/4SB, CR2-1/4XB, CRSB36, CR36, CRV36X
