Product Description

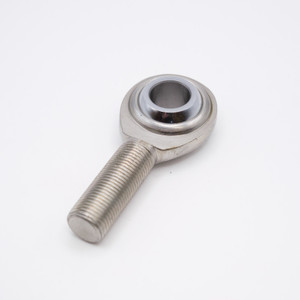

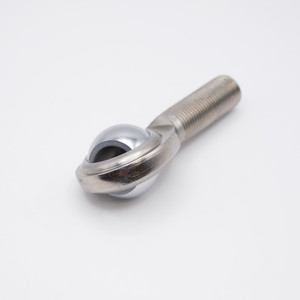

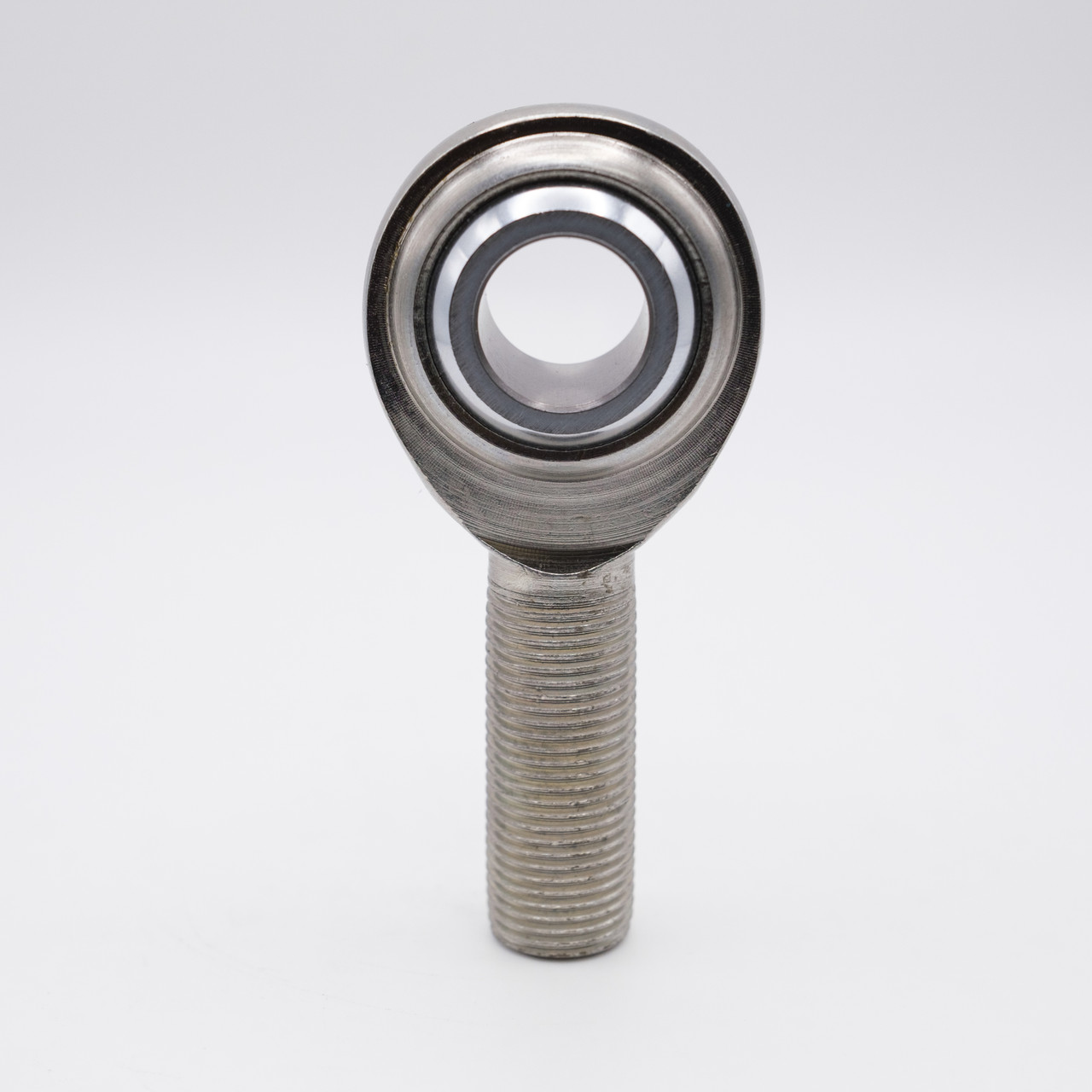

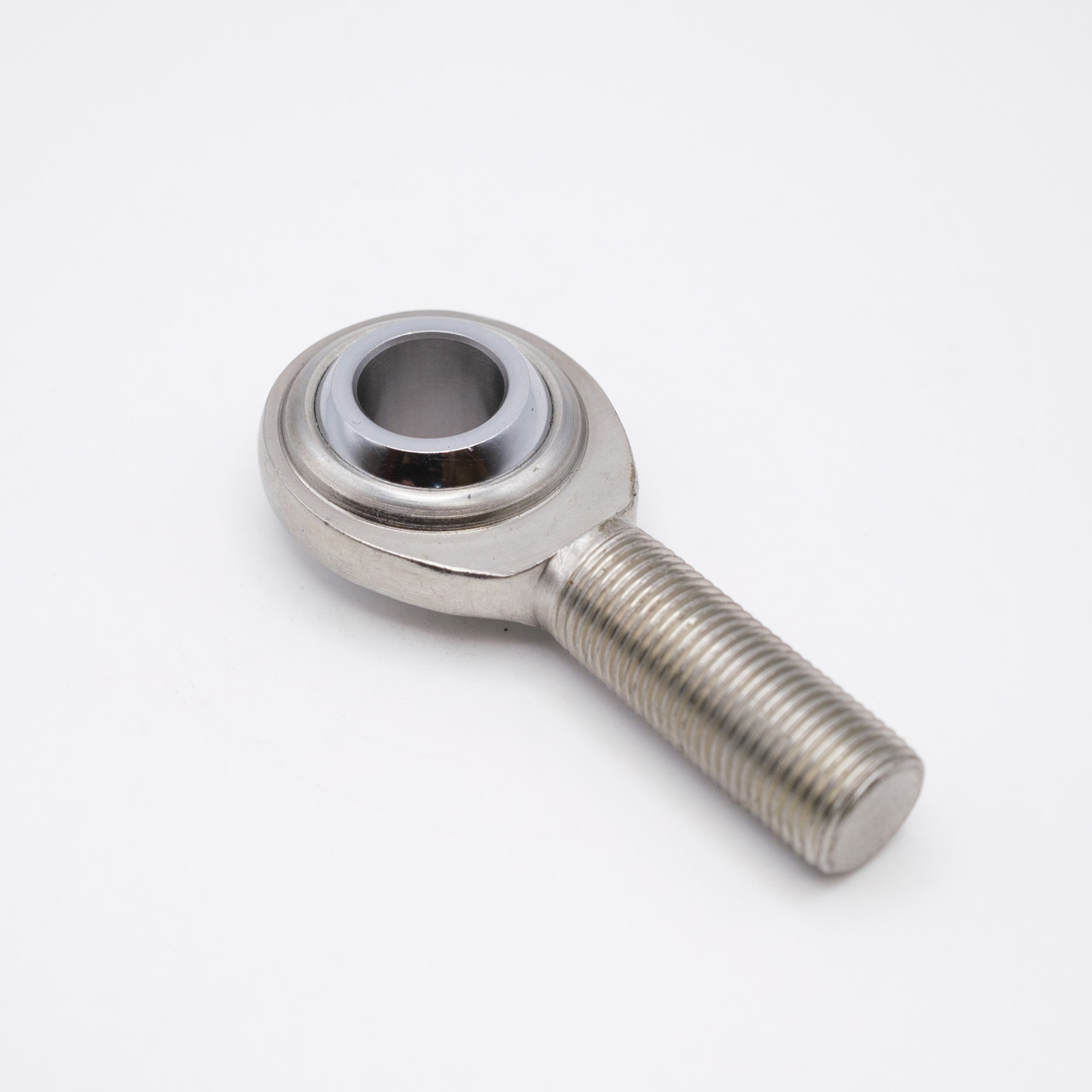

EML8T Rod-End Bearing
Key Features
EML8T Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. EML8T bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank. This particular rod-end bearing features a left hand thread and a PTFE Liner, allowing the bearing to self-lubricate.
Applications / Industries
EML8T Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Construction Equipment, Industrial Machines, Lawn and Garden Equipment, Truck and Bus Components, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Outer Diameter 1-5/16"
Overall Height 3-3/32"
Base to Center 2-7/16"
Thread Size 1/2-20
Thread Direction Left Hand
Ball Material Nickel Plated
Housing Material Zinc Plated
Lubrication Light Oil
Static Load 7,900 lbf
Country of Origin China
Interchange Numbers HML8, HML8G, TREL-8, TREL8N, TREL-8N, MB-8, MB-8Z, POSB8LZ, EML8T, CML8
