Product Description

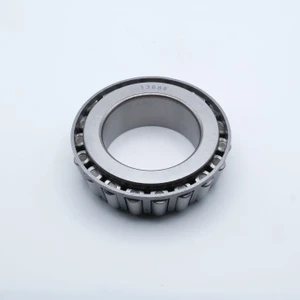

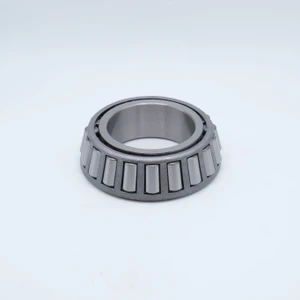

LM29749 Tapered Roller Cone
Key Features
LM29749 is a Tapered Roller Cone made up of an inner ring, rollers, and cage assembly. The cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. When paired with a matching cup, This design makes this bearing capable of supporting heavy loads in both axial and radial directions. Our LM29749 Tapered Roller Bearings are ideal for environments where high speed and heavy loads occur, and low friction is needed.
Applications / Industries
LM29749 Tapered Roller Cones are designed for use with a matching cup. Once paired, they can be used in applications such as Gearboxes, Hoisting Equipment, Rolling Mills, Mining Industry Machines, Steer Axle, Drive Axles, Pusher Axles, Tag Axles, Engines, and Propellers.
Product Videos
Custom Field
Inner Diameter 1-1/2"
Width 23/32"
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 12,364 lbf
Dynamic Load 9,554 lbf
Speed Limit 5,300 RPM
Country of Origin China
Interchange Numbers LM29749, 4T-LM29749
