Product Description

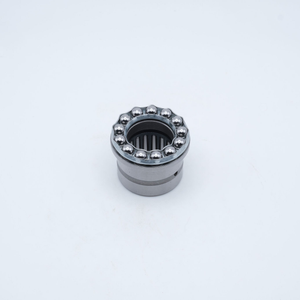

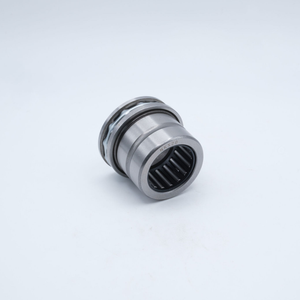

NAXI4535 Combined Needle Roller Bearing
Key Features
NAXI4535 Combined Needle Roller Bearing consists of a radial needle roller bearing combined with a thrust bearing. It can accommodate both radial and axial loads. It is particularly suitable for applications where other types of locating bearing arrangements occupy too much space, or where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for arrangements with simple thrust washers.
Applications / Industries
NAXI4535 Combined Needle Roller Bearings are used in a range of applications from Universal Joints, Gearbox Layshafts, First Motion Shafts, Mainshaft Constant Mesh Gear Wheel Bearings, Rocker Arm Pivots, Pumps, Compressors, and Transmissions, among others.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 75mm
Width 35mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 13,511 lbf
Dynamic Load 18,749 lbf
Speed Limit 4,500 RPM
Country of Origin Japan
Interchange Numbers NKXI45-35, NAXI-4535, NAXK4535, NAX457535, NKXI-45
