Product Description

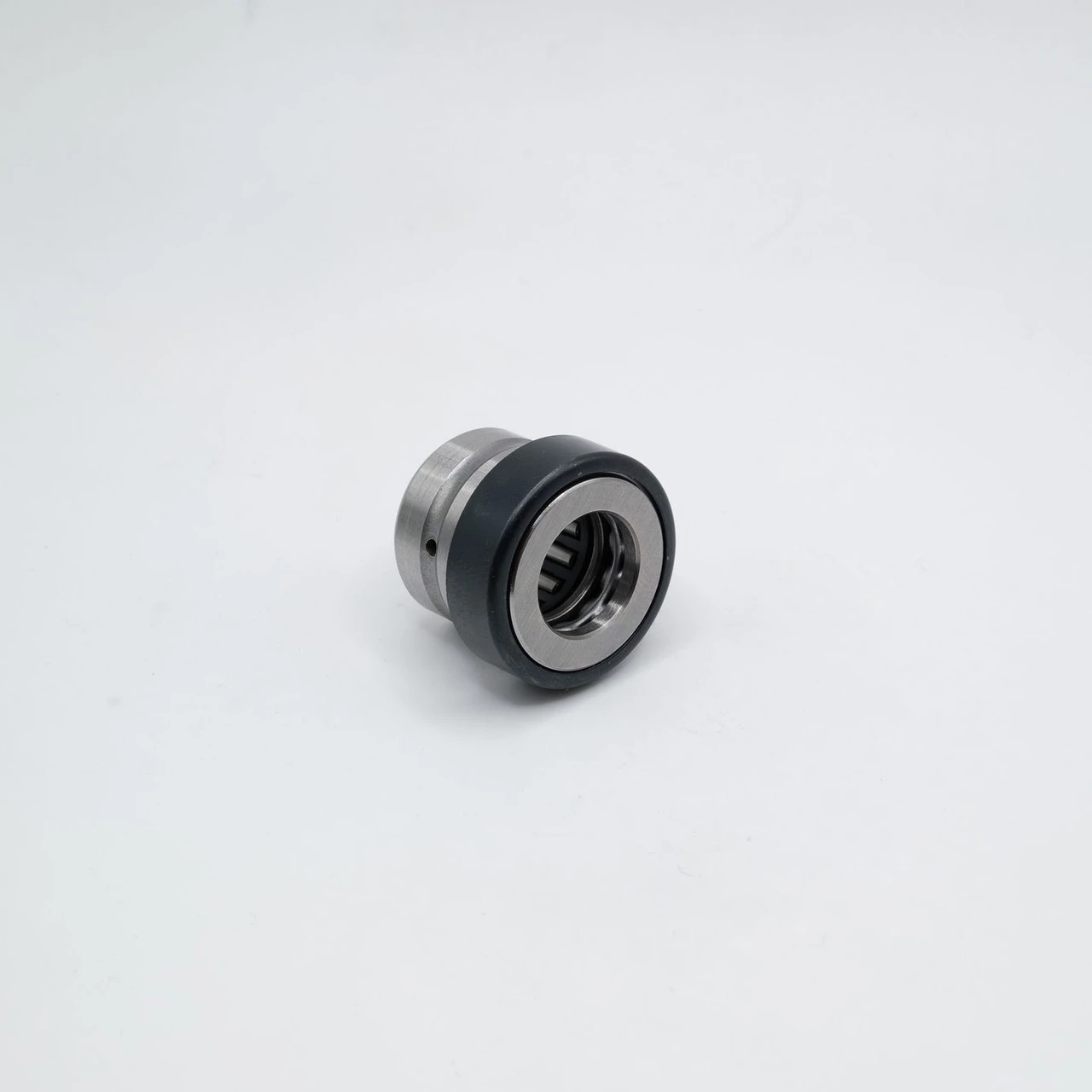

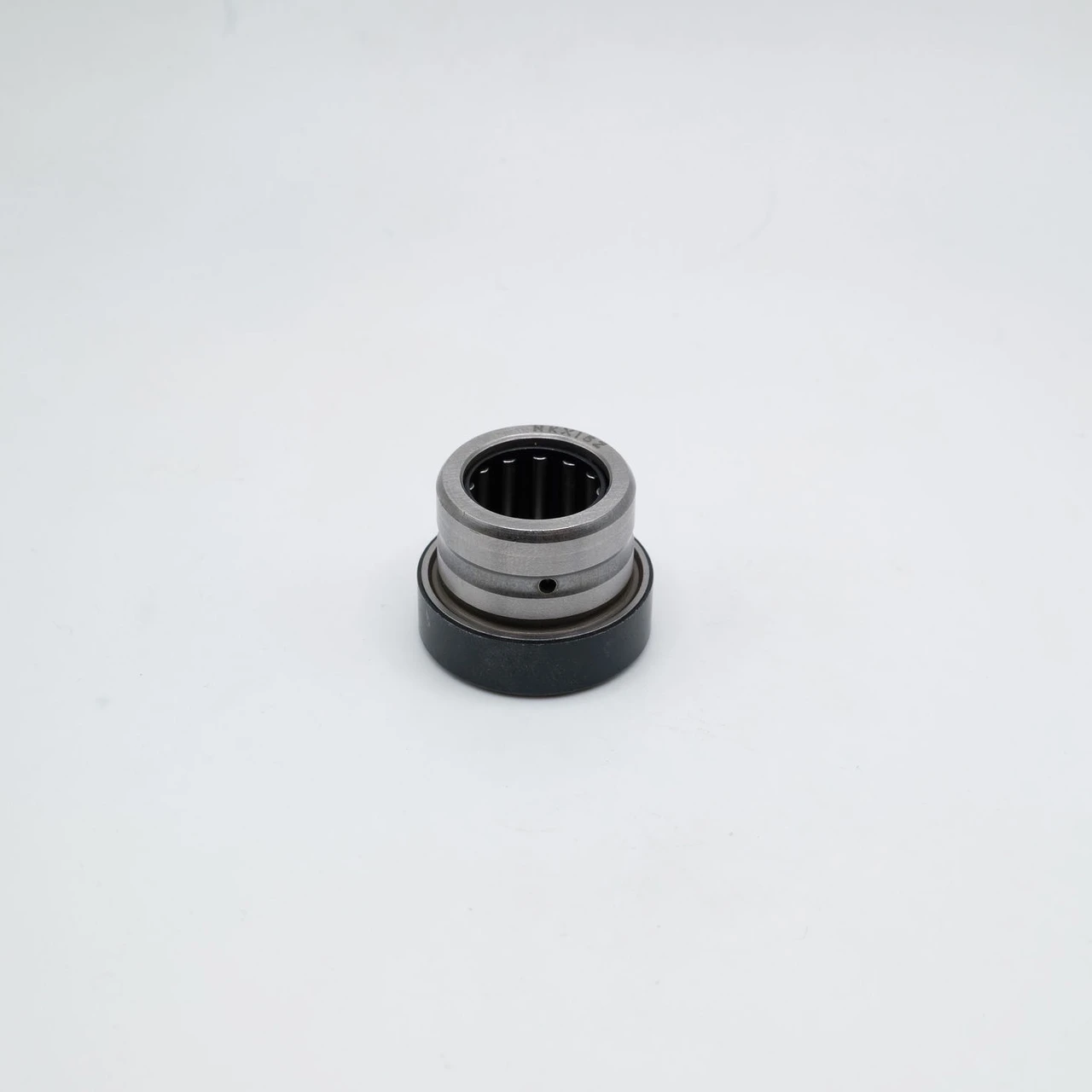

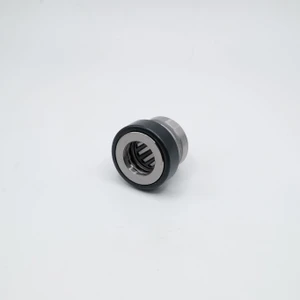

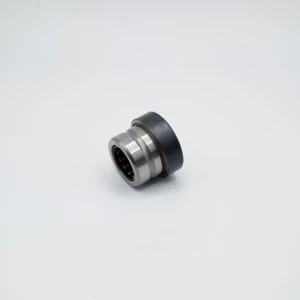

NKX15Z Combined Needle Roller Bearing
Key Features
The NKX15Z Combined Needle Roller Bearing consists of a radial needle roller bearing combined with a thrust bearing with steel cover. It can accommodate both radial and axial loads. NKX15Z is particularly suitable for applications where other types of locating bearing arrangements occupy too much space, or where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for arrangements with simple thrust washers.
Applications / Industries
NKX15Z Combined Needle Roller Bearings are used in a range of applications from Universal Joints, Gearbox Layshafts, First Motion Shafts, Mainshaft Constant Mesh Gear Wheel Bearings, Rocker Arm Pivots, Pumps, Compressors, and Transmissions, among others.
Product Videos
Custom Field
Inner Diameter 15mm
Outer Diameter 24mm
Width 23mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 2,855 lbf
Dynamic Load 2,405 lbf
Speed Limit 9,500 RPM
Country of Origin China
Interchange Numbers NKX15Z, NKX15Z, NKX15Z
