Product Description

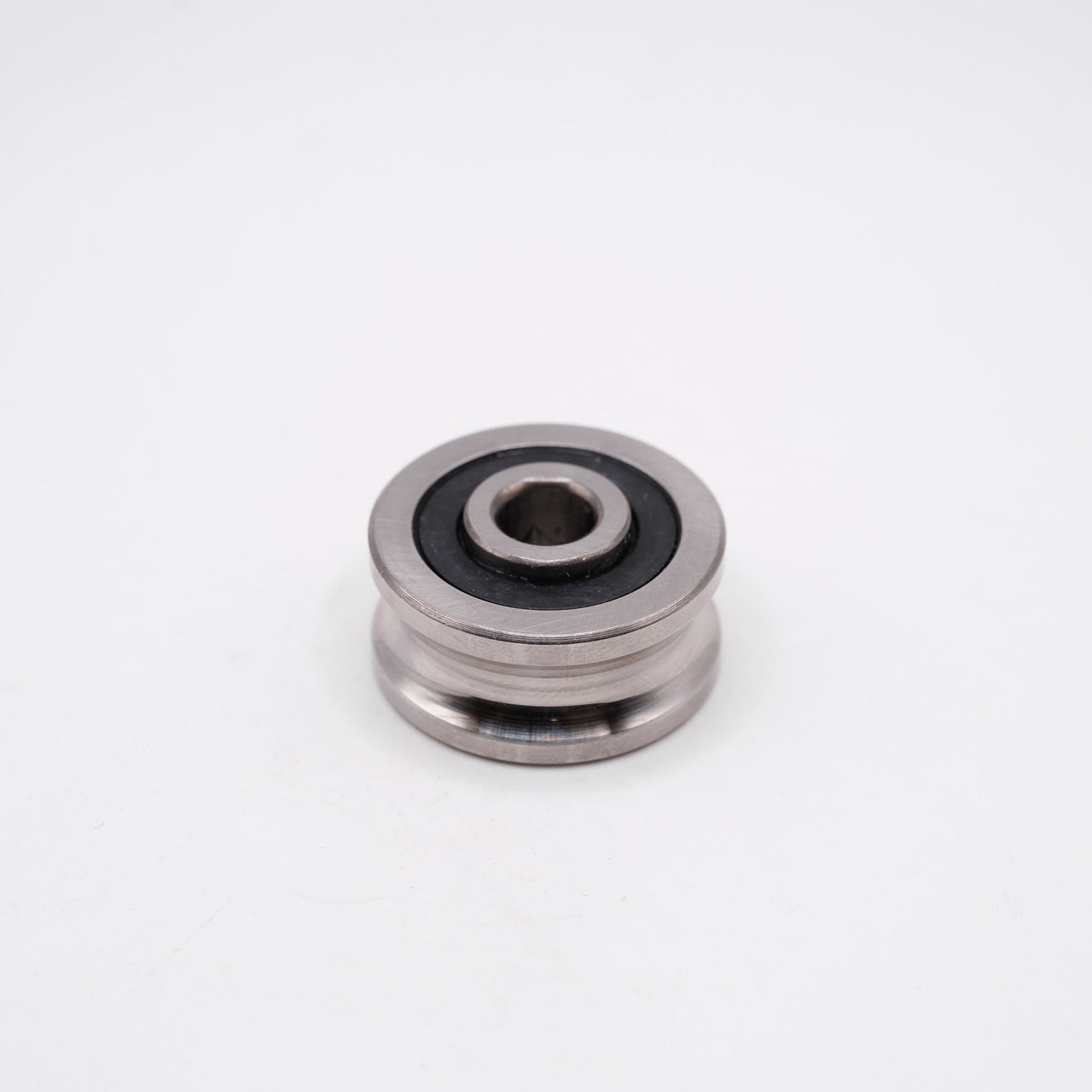

SG22U U-Groove Bearing
SG22U features an extended inner ring and a U-Groove on the outer diameter, allowing it to roll smoothly down a track. This bearing is pre-lubricated with grease, allowing it to be ready for use upon delivery.
Sizes: 8mm ID x 22.5mm OD x 13.5mm Width + 14.5mm Extended Inner Ring Width = 0.315" ID x 0.886" OD x 0.531" Width + 0.571" Extended Inner Ring Width
Interchange: SG22U
Applications: SG22U U-Groove Ball Bearings are used in a range of applications from Paper Industry, Robotics, Home Repair & Hobbyist Projects.
Product Videos
Custom Field
Inner Diameter 8mm
Outer Diameter 22.5mm
Width 13.5mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Country of Origin China
Interchange Numbers SG22U
