Product Description

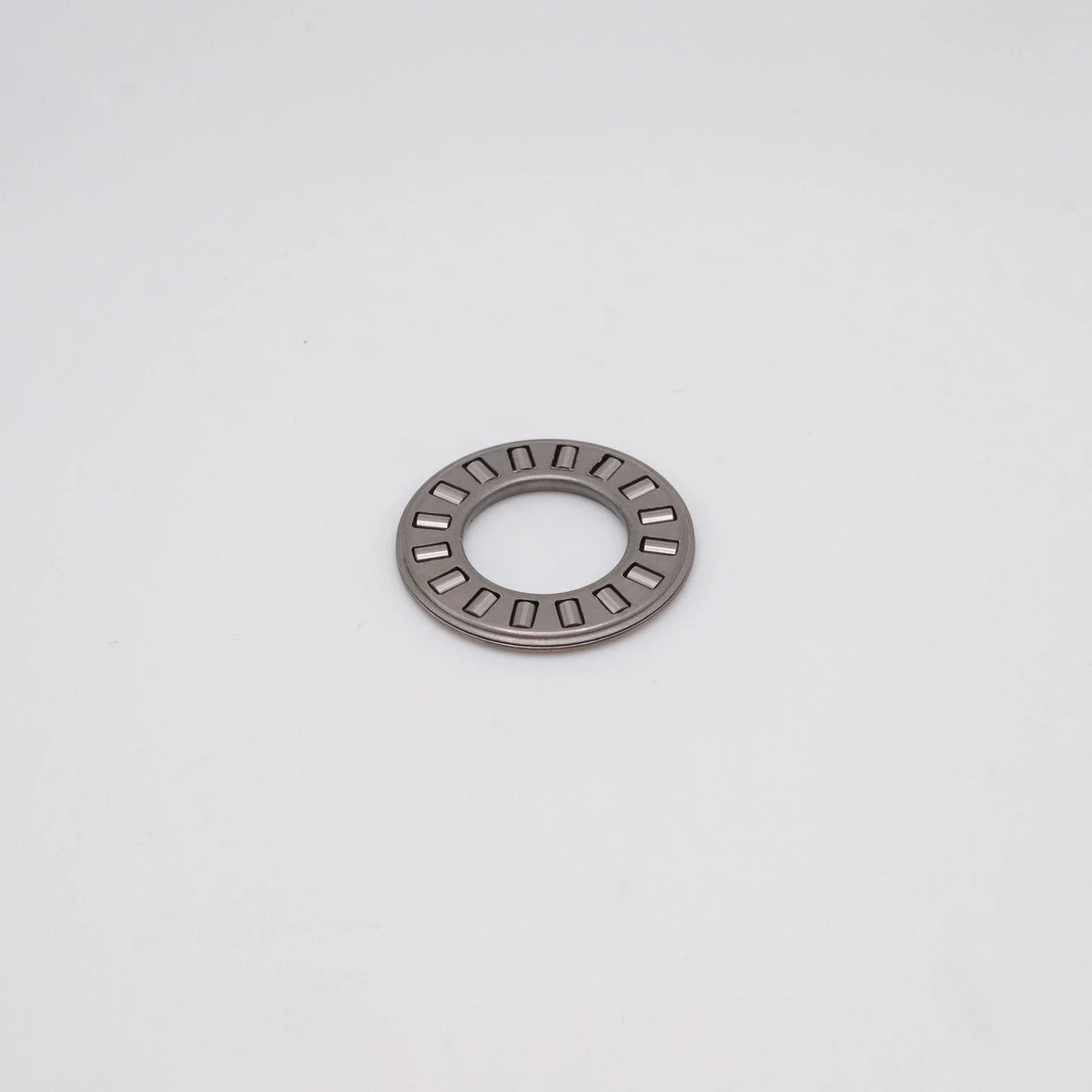

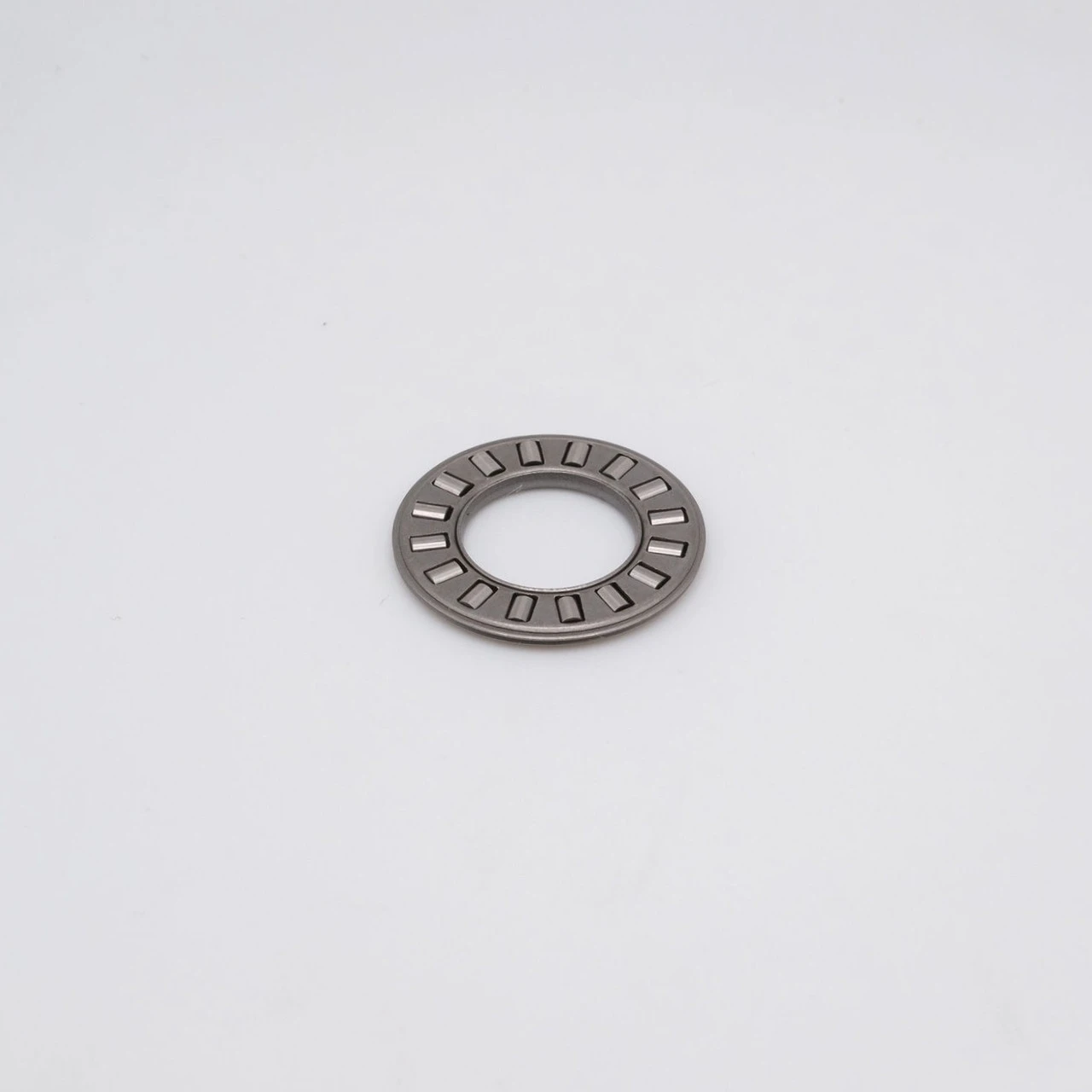

NTA2435 is a Thrust Needle Roller Bearing designed for use with a set of TRB-Series thrust washer and cage assemblies in applications where adjacent components cannot serve as raceways. This bearing is made from chrome steel and has been pre-lubricated with light oil, ensuring it is ready for use upon arrival.
Sizes: ID 1.500" x OD 2.188" x W 0.078" = ID 38.1mm x OD 55.58mm x W 1.98mm
Interchange: TC2435, NTA2435, NTA-2435
Applications: Thrust Needle Roller Bearing is used in a variety of applications ranging from Automotive Transmission Systems to Clutch Assemblies, Material Handling Systems, Machine Tools, Gearboxes, Speed Reducers, Conveyor Systems, Milling Machine Spindles, Lathe Machines, among others.
Product Videos
Custom Field
Inner Diameter 1-1/2"
Outer Diameter 2-3/16"
Width 5/64"
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 26,500 lbf
Dynamic Load 5,220 lbf
Speed Limit 7,600 RPM
Country of Origin China
Interchange Numbers TC2435, NTA2435, NTA-2435
