Product Description

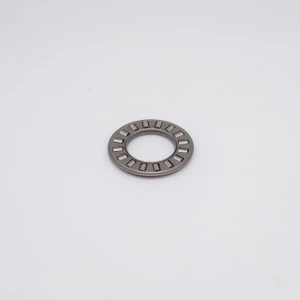

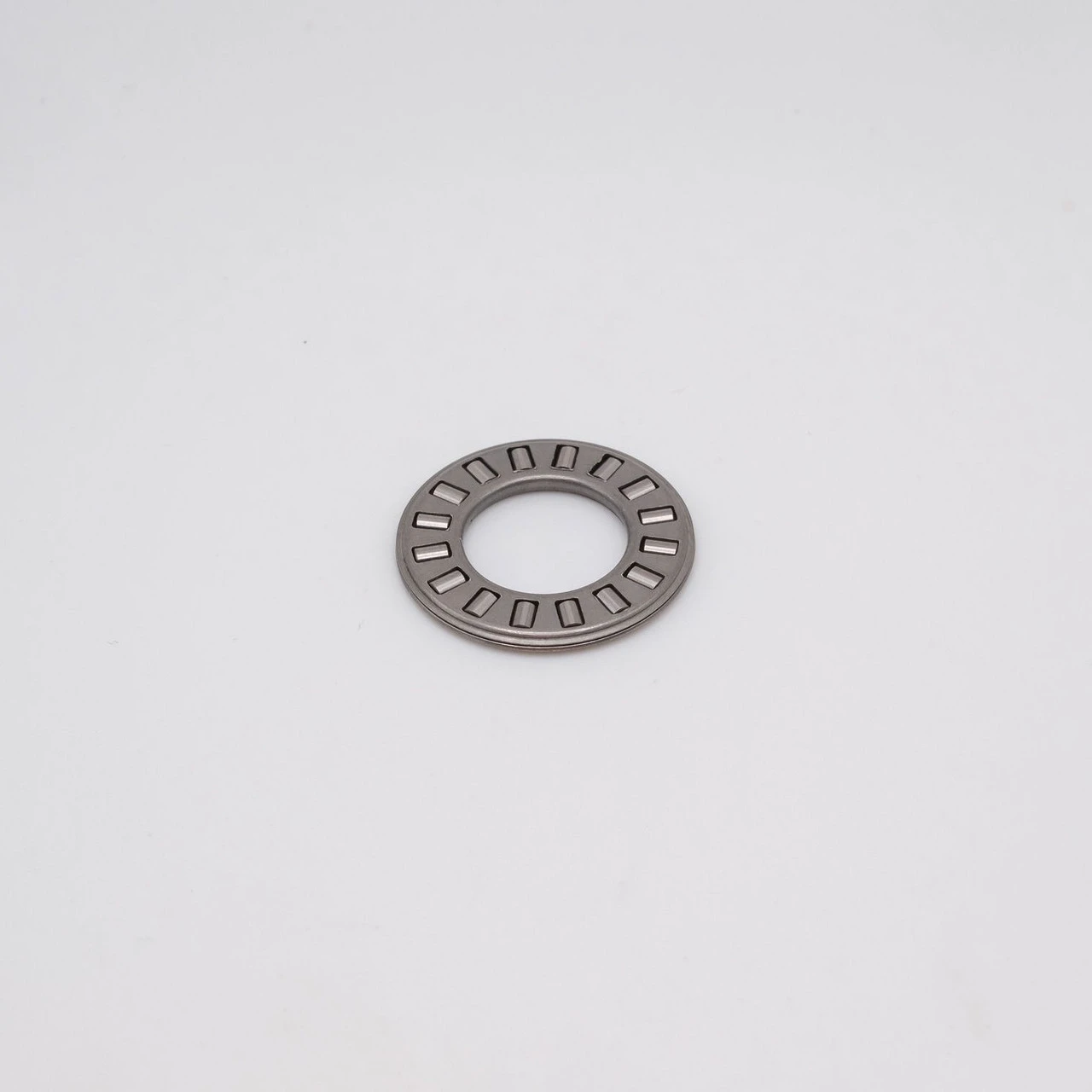

NTA3244 is a Thrust Caged Needle Roller Bearing designed for use with a set of thrust washers in applications where adjacent components cannot serve as raceways. This bearing is made from chrome steel and has been pre-lubricated with light oil, ensuring it is ready for use upon arrival.
Sizes: ID 2.000 x OD 2.750" x W 0.078" = ID 50.8mm x OD 69.85mm x W 1.98mm
Interchange: NTA3244, NTA-3244
Applications: Thrust Cage Needle Roller Bearings are used in a variety of applications including Machine Tools, Drive Shafts, Automotive Steering Gears and Clutches, Rotary Tables, Outboard Motor Propellers, Textile Machinery, Printing Equipment, and other Limited Space Applications.
Product Videos
Custom Field
Inner Diameter 2"
Outer Diameter 2-3/4"
Width 5/64"
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 29,801 lbf
Dynamic Load 5,400 lbf
Speed Limit 6,100 RPM
Country of Origin China
Interchange Numbers NTA3244, NTA-3244
